Insulation Gaskets Kits

Insulation Gaskets Kits

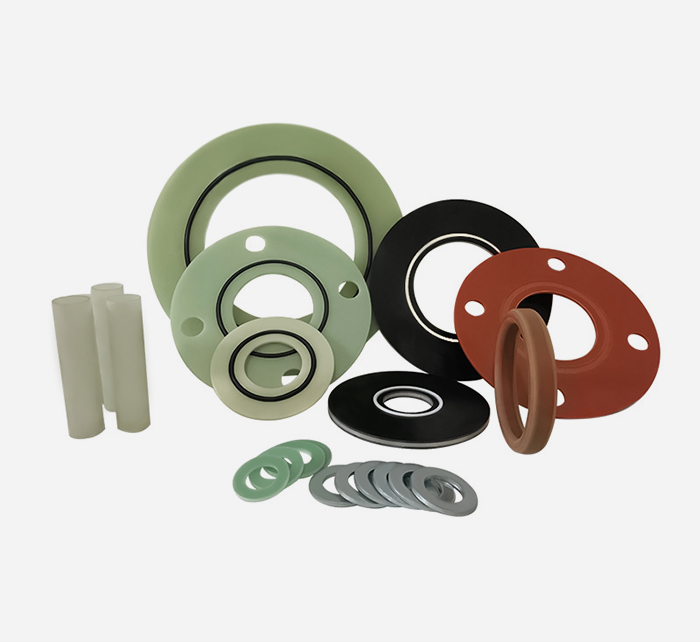

Insulation gasket kits are used to Isolate conductivity from one flange to another. There are multiple versions of insulation gaskets and kits but all of them protect flanges from corrosion especially where dissimilar flange materials are used.

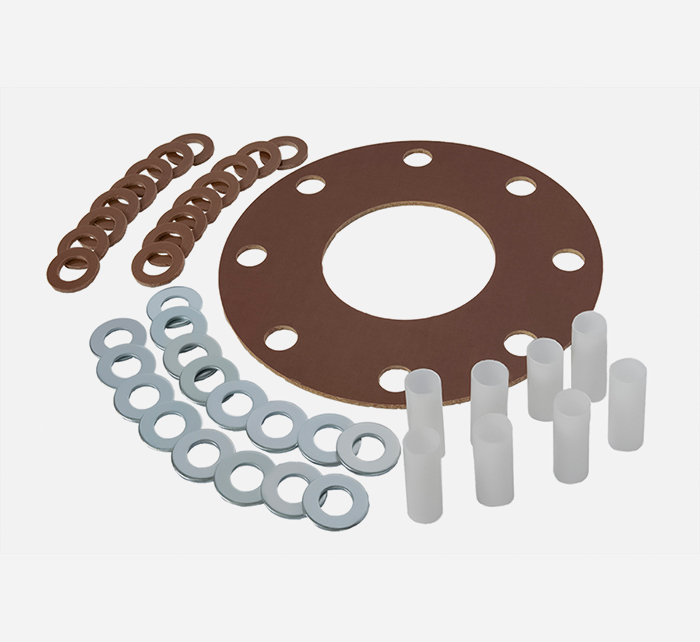

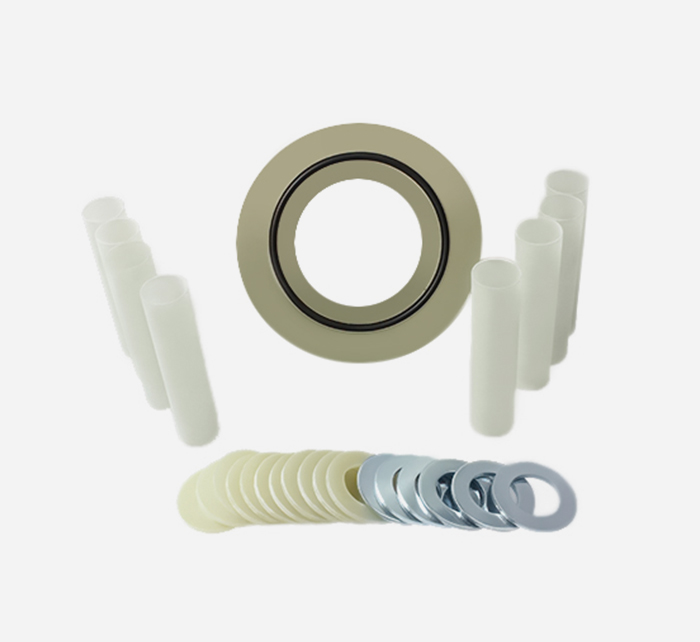

Components of Flange Insulation Gasket Kit Each insulation Kit consists of

· one central flat or oval section gasket
· one insulation sleeve per bolt
· two insulating steel washers per bolt
· two plated steel washers per bolt

All these components are produced using special materials possessing chemical stability, dielectric properties, and low water absorption so that the purpose is solved. The full sets are packed individually and labeled mentioning the flange size, rating, type, and material combination. Insulation kits are generally available up to 24 inches, but custom-made higher nominal sizes can be produced on the requirement.

Get a Quote
PREV：Corrugated Metal Gaskets
NEXT：Gasket Raw Materials

Product Details

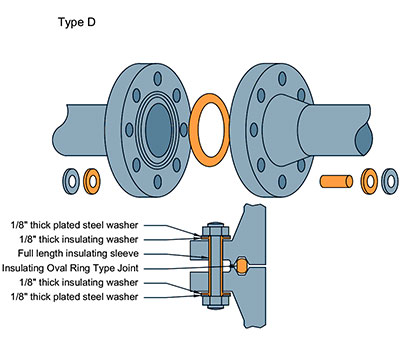

RTJ Type– (Type D)

The gaskets are made for tongue and grove flanges and dropped into the grove. Typically manufactured to API 6A for wellhead equipment. They also comply with ASME B16.20 sizes and ratings.

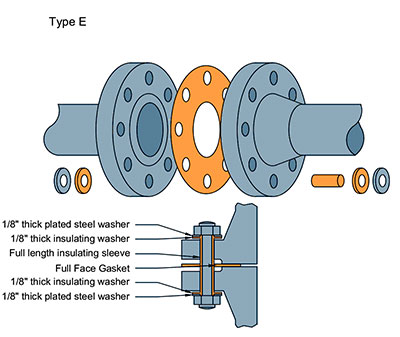

Full Face Type (Type E)

The outside diameter of the gasket matches the external diameter of the flanges. So the gasket completely covers the whole flange surface.  They are produced with precision-located bolt holes and are easy to position in the center. This design will prevent foreign material accumulation between the flange faces and thus enhance the isolation properties of the kit. Type E flange insulation kits are available in phenolic, neoprene-faced phenolic, and high-temperature materials.

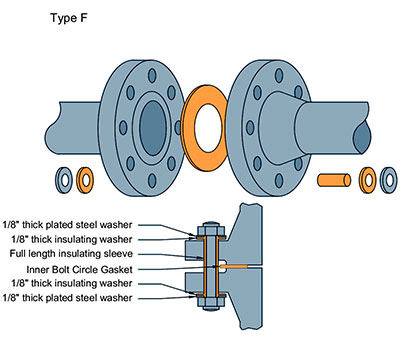

Raised Face Type – (Type F)

This gasket is manufactured to fit only the raised face surface of the flanges. The outside diameter of the gasket is designed to be slightly less than the inside diameter of the bolt circle. To avoid the accumulation of foreign materials, Special band protectors can be used for the joint assembly to strengthen the cathodic isolation further.  These are manufactured from 1/8″ thick fabric-based phenolic sheets either without coating or with a nitrile rubber coating on the two faces. Type F gaskets are also available in non-asbestos fibers with high isolation capacity.



Recommended Products

About Us
Ningbo Rilson Sealing Material Co., Ltd.
Ningbo Rilson Sealing Material Co., Ltd. was founded in 2007, is a professional Insulation Gaskets Kits manufacturer and Insulation Gaskets Kits supplier and located in Ningbo, Zhejiang Province. The manufacturing facility spans across 20,000 square meters and is dedicated to ensuring the secure and dependable operation of fluid sealing systems, offering clients the appropriate sealing technology solutions. We operate numerous production lines for sealing products, specializing in the design and manufacture of sealing gaskets and other sealing materials for the petroleum, chemical, power, shipbuilding, and machinery manufacturing sectors. Our primary products consist of spiral wound gaskets, ring joint gaskets, kammprofile gaskets, corrugated metal gaskets, insulation kit gaskets, and Non-asbestos gaskets, among others.
Our clientele hails from various parts of the globe, and through our extensive experience in the industry, we have earned the trust and recognition of our customers. Presently, we have obtained certifications from several prominent companies. Additionally, we have successfully achieved ISO9001:2015 quality management system certification, as well as the API 6A certificate, among others.
As a professional Insulation Gaskets Kits factory, The company is dedicated to delivering value to customers, promoting health and happiness among workers, and producing positive social effects. We uphold the core principles of integrity, precision, innovation, and mutual success. With the aspiration of becoming the preferred brand in industrial gaskets, we are committed to establishing ourselves as a top-tier player in the fluid sealing industry and working towards the objective of ensuring mutual satisfaction among customers and employees.
Certificate Of Honor
  • Api Certificates
  • ISO9001
  • ISO14001
  • ISO45001
News & Event
Insulation Gaskets Kits Industry knowledge

In the modern industrial field, especially in high-risk industries such as electricity, chemical industry, and petroleum, the safe operation and efficient performance of equipment are crucial. As one of the key components, the insulation gasket kit plays an irreplaceable role in ensuring the electrical insulation, mechanical support, and improving the overall operation stability of the equipment with its unique advantages. Ningbo Rilson Sealing Material Co., Ltd., provides solid safety guarantees for many industrial customers through its high-quality insulation gasket kit products and professional services.
Excellent electrical insulation performance: The core value of the insulation gasket kit lies in its excellent electrical insulation ability. The gaskets and sleeves made of high-quality insulation Material can effectively isolate the charge transfer between metal parts, prevent leakage and arcing, and significantly reduce safety risks such as fire and electric shock.
Stable mechanical support: In addition to electrical insulation, the insulation gasket kit also has a strong mechanical support function. The metal gasket inside it works in conjunction with the insulation gasket, which not only enhances the stability of the connection, but also effectively resists the influence of external factors such as vibration and impact, ensuring the long-term stable operation of the equipment.
High sealing and corrosion resistance: Insulation gasket kits usually use high-performance sealing Material and corrosion-resistant Material to ensure high sealing of the joints and resistance to harsh environments. This helps prevent fluid or gas leakage while reducing equipment damage and safety hazards caused by corrosion.
Easy to install and maintain: Well-designed insulation gasket kits usually have convenient installation and maintenance features. This not only improves work efficiency, but also reduces maintenance costs, bringing users a more convenient use experience.
Ningbo Rilson Sealing Material Co., Ltd., as a leading company in the field of sealing Material, is well aware of the importance of insulation gasket kits in industrial production. Therefore, the company has been committed to the research and development and production of high-quality insulation gasket kits to meet the diverse needs of customers in different industries.
Technological innovation and quality excellence: Ningbo Rilson has a professional R&D team and advanced production equipment, and continuously introduces new technologies, new Material and new processes to improve the technical content and quality level of products. The company strictly follows international standards for production and quality control to ensure that each set of insulation gasket kits has excellent performance and reliability.
Customized service: Ningbo Rilson provides customized insulation gasket kit services for the special needs and working conditions of different customers. The company works closely with customers to gain an in-depth understanding of their needs and application scenarios, and provides customers with tailor-made solutions. This personalized service model has won wide praise and trust from customers.
Professional support and after-sales service: Ningbo Rilson focuses on providing customers with a full range of professional support and after-sales service. The company has an experienced technical team that can provide customers with a full range of support such as technical consultation, installation guidance, troubleshooting and maintenance services. At the same time, the company has also established a complete after-sales service system to ensure that customers receive timely and effective help and support during use.
insulation gasket kits play an important role in industrial production with their excellent electrical insulation performance, stable mechanical support, high sealing and corrosion resistance, and easy installation and maintenance. Ningbo Rilson Sealing Material Co., Ltd. has made remarkable achievements in the field of insulation gasket kits with its advantages of technological innovation, excellent quality, customized services and professional support, providing solid security guarantees and efficient service support for many industrial customers.
