Can corrugated metal gaskets improve sealing performance?

In industrial and mechanical engineering, sealing performance is crucial, especially in applications involving high pressure, high temperature, or extreme environments. Whether it's hydraulic systems, gas pipelines, or connecting components in engines and pumps, poor sealing can lead to leaks, reduced efficiency, and even equipment damage. Therefore, choosing the right gasket is essential to ensure proper equipment operation and extend its lifespan.
Corrugated metal gaskets, as a common sealing material, are increasingly favored by various industries due to their excellent sealing performance. So, how do corrugated metal gaskets improve sealing performance?

1. What are corrugated metal gaskets?

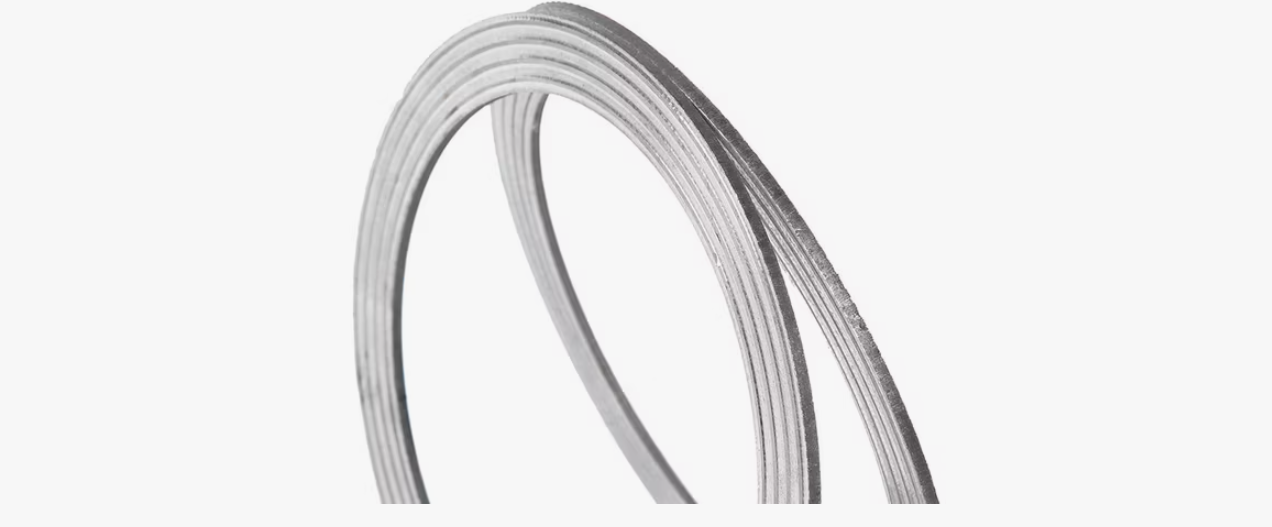

A corrugated metal gasket (CMG) is a gasket made of metal material, usually with a corrugated surface structure. The corrugated design allows the metal gasket to form a better seal between two surfaces. Unlike traditional soft gaskets (such as rubber or fiber gaskets), corrugated metal gaskets perform better in high-temperature, high-pressure, and corrosive environments. They are usually made of stainless steel, copper, alloys, or other corrosion-resistant metal materials, ensuring extremely high mechanical strength and durability.

2. How do corrugated metal gaskets improve sealing performance?
(1) Corrugated design enhances sealing effect
The corrugated shape of the corrugated metal gasket is its key design feature. The corrugated structure allows the gasket to undergo a certain degree of elastic deformation when subjected to pressure, thus forming a tighter contact with the contact surface. This elastic deformation property allows the gasket to fill in small surface irregularities and unevenness, thereby providing a more uniform sealing effect. Whether in high-temperature, high-pressure, or high-vibration environments, corrugated metal gaskets can effectively maintain sealing performance and prevent leaks.

(2) Advantages of high temperature and high pressure resistance
Compared with soft gaskets, the material properties of corrugated metal gaskets allow them to exhibit stronger resistance under extreme conditions. Metal materials can withstand higher temperature changes and are often used in pipelines and equipment in high-temperature environments. For example, in steam pipelines and high-temperature gas equipment, corrugated metal gaskets can maintain good sealing performance at temperatures above 700°C. At the same time, metal gaskets also offer superior high-pressure resistance compared to traditional gaskets, maintaining their sealing integrity even under pressures up to several hundred bar, reducing the risk of sealing failure.

(3) Vibration and Shock Resistance
In many industrial applications, equipment operation is accompanied by vibration and shock, such as in engines, compressors, and pumps. The elasticity and metallic material of corrugated metal gaskets give them excellent vibration resistance. Vibration or impact forces can cause deformation or rupture in traditional soft gaskets, while corrugated metal gaskets can absorb and dissipate these forces, maintaining the sealing effect. This is crucial for maintaining the long-term stable operation of equipment, especially in harsh environments.

(4) Corrosion Resistance and Chemical Stability
Another significant advantage of corrugated metal gaskets is their excellent corrosion resistance. Metal materials, especially stainless steel and nickel-based alloys, can withstand the erosion of many corrosive gases and liquids. This makes corrugated metal gaskets widely used in chemical, oil and gas, and power generation industries, where contact with corrosive substances is common. For example, corrugated metal gaskets can withstand corrosion from acids, alkalis, chlorides, and other chemicals without compromising sealing performance. In contrast, many traditional rubber or non-metallic gaskets lose their elasticity in such environments due to chemical corrosion, leading to sealing failure.

(5) Strong Adaptability to Various Working Conditions
Due to their unique design and materials, corrugated metal gaskets can adapt to various complex working conditions. Whether it's high temperature, high pressure, frequent vibration, or highly corrosive working environments, corrugated metal gaskets can provide long-lasting sealing. In some specific industries, such as aerospace, nuclear energy, and marine engineering, corrugated metal gaskets can ensure sealing effectiveness, effectively preventing leaks even under demanding operating conditions.

(6) Comparison of Corrugated Metal Gaskets with Other Types of Gaskets
Compared to traditional flat gaskets (such as rubber gaskets, asbestos gaskets, or fiber gaskets), corrugated metal gaskets offer significant sealing advantages. Flat gaskets typically rely on elastic materials to fill irregularities on the contact surface, but they are prone to deformation in high-temperature and high-pressure environments, leading to sealing failure. Corrugated metal gaskets, thanks to their corrugated design, maintain better sealing performance under pressure, effectively preventing leaks even under harsh conditions.

Furthermore, corrugated metal gaskets offer superior flexibility and sealing capabilities compared to ordinary metal gaskets (such as flat metal gaskets). Flat metal gaskets are typically rigid and may result in uneven contact surfaces under pressure, leading to incomplete sealing. The corrugated design of corrugated metal gaskets allows them to better adapt to uneven contact surfaces, thus forming a tighter seal.

With their unique corrugated design and metal material, corrugated metal gaskets provide excellent sealing performance in various demanding environments. Whether in high-temperature, high-pressure, or corrosive environments, or in applications requiring vibration and shock resistance, corrugated metal gaskets effectively improve sealing performance, preventing leaks and malfunctions.

If you need to ensure the sealing integrity of equipment in demanding industrial applications, choosing corrugated metal gaskets is a wise choice. They not only provide powerful sealing performance but also guarantee stable equipment operation, reduce maintenance costs, and improve work efficiency.
