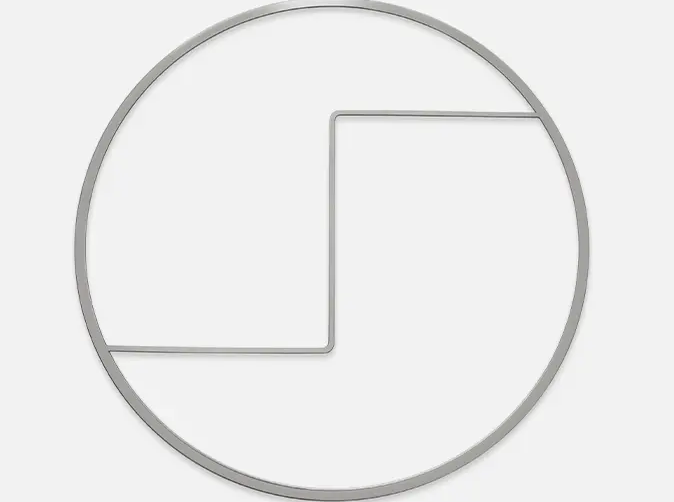

What are Heat Exchanger Gaskets?

In simple terms, heat exchanger gaskets are key components installed between the metal plates of a plate heat exchanger to seal, prevent leaks, and guide the flow of the medium. Although they do not directly participate in heat exchange, they are crucial for the efficient, stable, and leak-free operation of the entire system.

1. The Function of Heat Exchanger Gaskets

Core Sealing: This is the most fundamental function of the gasket. Through its elastic deformation, it fills the tiny unevenness between the plates, forming a tight seal to prevent the mixing of two fluids (such as hot and cold water, steam and process liquids) and to prevent leakage to the external environment.

Guiding Flow Channels: The gasket is not a simple square ring; it has carefully designed sealing and open areas. These structures together determine the flow path of the fluid between the plates, ensuring that the hot and cold media flow alternately and counter-currently, thereby achieving the highest heat exchange efficiency.

Maintaining Clearance: The thickness of the gasket determines the size of the gap between adjacent plates; this gap is the fluid channel. An appropriate gap is crucial for maintaining optimal flow rate and pressure drop.

Buffering and Insulation: Gaskets possess a certain degree of elasticity, absorbing minute displacements of the plates caused by temperature fluctuations and pressure changes, thus acting as a buffer. Simultaneously, they serve as an electrical insulation layer between the plates, helping to prevent electrochemical corrosion.

2. Main Characteristics and Classification

Application Based on Material The characteristics of heat exchanger gaskets are primarily determined by their materials and structure.
Classification by Material (This is the most crucial selection):
Nitrile Rubber: One of the most commonly used gasket materials, with excellent resistance to oil and mineral-based fluids, suitable for most conventional operating conditions such as water, oil, hot water, and steam (typically -15°C to +130°C).
Ethylene Propylene Diene Monomer (EPD) Rubber: Outstanding heat resistance, ozone resistance, and aging resistance, especially suitable for high-temperature hot water, superheated steam, and certain chemical media (such as alkaline solutions and ketones), with a wider operating temperature range (up to approximately 150°C - 170°C). Fluororubber: Known as the "King of Gaskets," it boasts excellent high-temperature resistance (up to 200°C and above) and chemical corrosion resistance, resisting most oils, fuels, solvents, and strong acids. However, it is extremely expensive and used only in extremely harsh conditions.
Hypalon: Offers good resistance to acidic gases and oxidizing media, commonly used in industrial applications handling chlorine, sulfur dioxide, and other similar media.

Classification by Installation Method:
Adhesive-bonded: The most common type, using specialized adhesive to firmly bond the gasket to the gasket groove in the plate. Installation requires skill, but the fixation is reliable.
Snap-on type: The gasket itself has a snap-on structure, allowing it to be directly fastened to the plate without adhesive. Installation and replacement are very convenient, greatly reducing maintenance time and costs, representing the modern trend.

3. Maintenance and Replacement

Gaskets are the most vulnerable parts in heat exchangers that require the most attention and maintenance.
When is replacement necessary? (Common Signs)
Visible Leaks: Fluid leakage is found on the exterior of the equipment or at connections.
Medium Mixing: Unnatural temperature variations or contamination between hot and cold fluids at the outlet indicate internal seal failure.
Gasket Aging: Gaskets harden, lose elasticity, exhibit permanent compression deformation, surface cracking, or loss of adhesion.
Planned Maintenance: Preventative periodic replacement based on equipment operating time, temperature, and media properties.

Maintenance Points:
Cleaning: When replacing gaskets, thoroughly clean the gasket grooves on the plates to ensure no old adhesive or dirt remains, guaranteeing the sealing effect of the new gasket.
Tightening: During equipment assembly, tighten the bolts gradually and evenly according to the torque and sequence provided by the manufacturer, avoiding unilateral stress that could damage the gasket or cause uneven sealing.
Storage: Spare gaskets should be stored in a cool, dry, dark place, away from ozone sources (such as motors), and sealed in plastic bags to slow down their natural aging.
