Graphite Packing with Carbon Fiber Corners

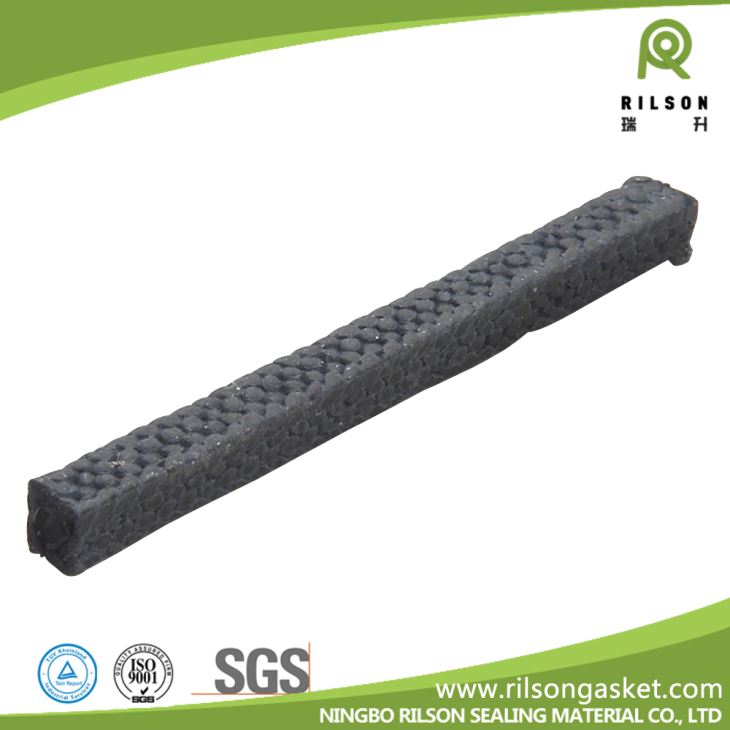

Graphite packing with carbon fiber corners is a multi-fiber packing, braided from expanded graphite yarns and carbon fibers, the diagonally braided from graphite yarn, reinforced in all four corners with carbon fibers. The corners and body make the packing three times more resistant to extrusion and increase the pressure handing capabilities compared to traditional graphite packings.
Graphite Packing with Carbon Fiber Corners Typical Application
1. It can be used in many demanding applications, both dynamic and static
2.Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant etc.
Prime Features
1.More resistant to extrusion
2.Increase the pressure handing capabilities.
Specifications
Density | 1.5g/cm³ |
PH range | 0~14 |
Temperature | -200℃~+555℃ in atmosphere -200℃~+650℃ in steam |
Pressure Mpa | Rotating | 3Mpa |
Reciprocating | 10Mpa |
Static | 28Mpa |
Shaft speed | m/s | 18m/s |
Materials: Carbon Fiber ,Graphite
Shape:lattice braid
Industry served:chemical&pharmaceutical,、power generation、oil and gas、pulp&paper,municipal/waste water, mining&minerals ,steel&metals,general industry.
