Title:Graphite Packing With PTFE Impregnated
Graphite Packing With PTFE Impregnated

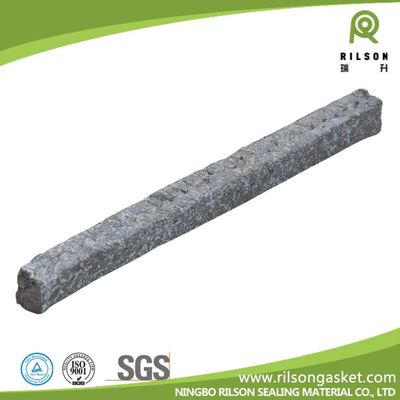

Graphite Packing with PTFE Impregnated is braided from Expanded graphite yarns which impregnated with PTFE as a blocking agent thus creating a non-straining packing. The yarns are reinforced by textile fibers.
Graphite Packing With PTFE Impregnated Typical Application
1. Can be used in many demanding applications, both dynamic and static
2. Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixer and agitators of pulp and paper, power station and chemical plant etc.
Prime Features
1.Excellent cross-section tightness, structural strength
2. Very lo friction-valve, wear resistant, yet gentle to shaft and stem.
Specifications
Density | 1.5g/cm³ |
PH range | 0~14 |
Temperature | -200℃~+280℃ |
Pressure Mpa | Rotating | 3Mpa |
Reciprocating | 10Mpa |
Static | 20Mpa |
Shaft speed | m/s | 22m/s |
Materials:PTFE,Graphite
Shape:lattice braid
Industry served:chemical&pharmaceutical,、power generation、oil and gas、pulp&paper,municipal/waste water, mining&minerals ,steel&metals,general industry.
