Title:Graphite Packing insert with inconel wire

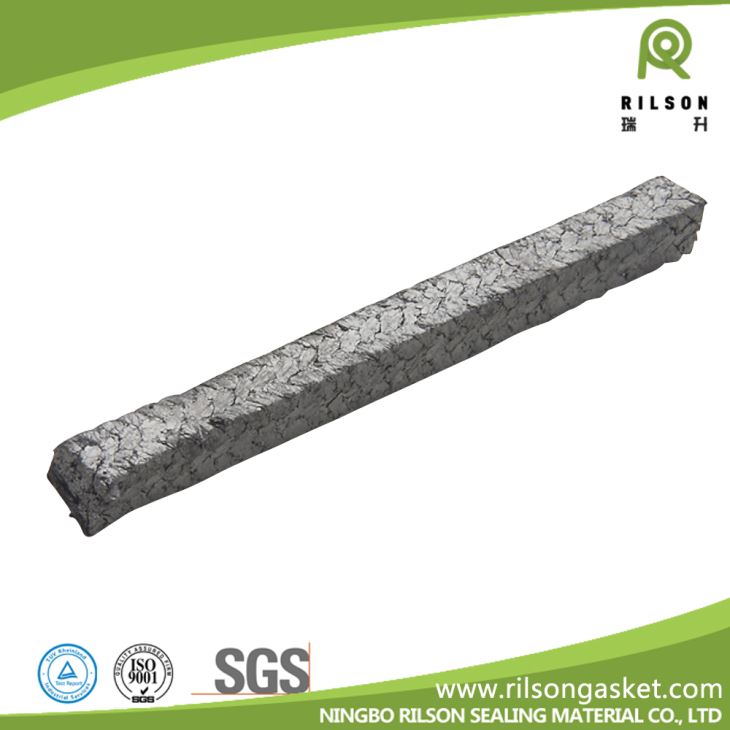

Graphite Packing insert with inconel wire
This style graphite packing is braided from graphite yarn with metal inconel wire .All-metal inconel coated structures greatly increased the erosion resistance of packing, make packing more compact, longer life.
It is competent to ultra-high temperature, high pressure conditions of the steam valve sealing.
Graphite Packing insert with inconel wire Application:
Hot water, high temperature and pressure steam, hydrogen gas, hydrocarbons, cryogenic liquids. etc. Petrochemical, power, chemical, mining industry.
Prime Feature
1.very low friction-valve,wear resistant,yet gentle to shaft and stem
2.Excellent cross-section tightness structural strength
3.Good chemical stability,oxidation resistance
4.High strength,high hardness,high temperature resistance
5.Good thermal stability,corrosion resistance and self-lubrication
Specifications
Density | 1.5g/cm³ |
PH range | 0~14 |
Temperature | -200℃~+555℃ in atmosphere |
Pressure Mpa | Rotating | 5Mpa |
Reciprocating | 15Mpa |
Static | 30Mpa |
Shaft speed | m/s | 23m/s |
Materials:flexible graphic inconel wire
Shape:lattice braid
Industry served:chemical&pharmaceutical,、power generation、oil and gas、pulp&paper,municipal/waste water, mining&minerals ,steel&metals,general industry.
