Title:Aramid Packing impregnate PTFE with /without oil
Aramid Packing impregnate PTFE with /without oil

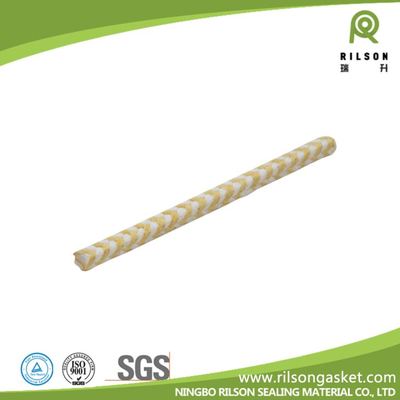

RILSON aramid fiber packing with insert lubricant impregnate with PTFE, an extremely durable, highly abrasive resistant packing. It is an idea for slurry service application.
Aramid Packing impregnate PTFE with /without oil Typical Application
1. This is a universal packing which can be used for pumps in all types of industry.
2.Chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, etc.
3. A durable packing able to withstand granular and abrasive applications.
Aramid Packing impregnate PTFE with /without oil Prime Features
1.It is wear resistant but may damage the shaft if not used properly.
2.A minimum shaft hardness of 60HRC is therefore recommended.
3.Superior performance.
4.Lower frictional factor.
Specifications
Density | 1.25g/cm³ |
PH range | 0~14 |
Temperature | -150℃~+260℃ |
Pressure bar | Rotating | 2Mpa |
Reciprocating | 20Mpa |
Static | 30Mpa |
Shaft speed | m/s | 25m/s |
Materials: PTFE ,aramid,lubricating oil
Shape:lattice braid
Industry served:pulp&paper,municipal/waste water,oil and gas, chemical&pharmaceutical,mining&minerals ,steel&metals ,power generation.
