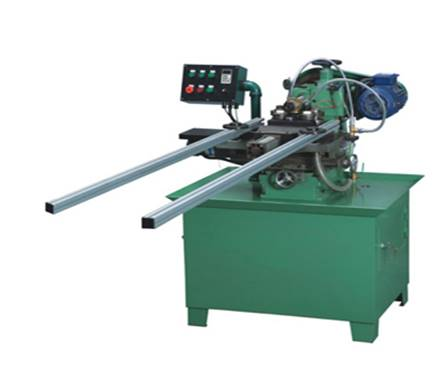

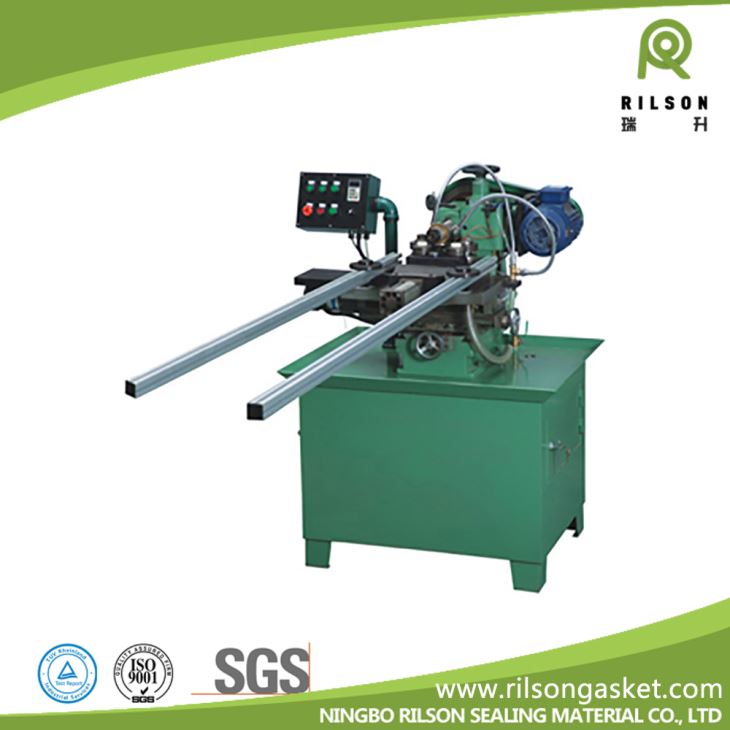

Title: High perfermance Kammprofile Gasket Machine
Kammprofile pitch both 1.0 and 1.5mm available. HSS saw blades and Alloy blade in set for option.
Kammprofile Gasket Machine specifications
Style | Kammprofile Gasket Machine |
Gasket thickness | 3-4mm |
Gasket width | 10-50mm |
Maximum gasket OD | 4000mm |
Minimum gasket ID | 280mm |
type of tooth | 1.5mm or 1.0mm pitch tooth,or wave tooth |
Total power | 4kw |
Spindle motor power | 1.5kw |
Spindle speed | 0-1200rpm |
Feed motor power | 0.4kw |
Feed linear speed | 0-20mm/s |
Frequency Converter | 2.2G 0.4G |
Power supply voltage | 380V/220V,3phases,for option |
Air compressor | 0.6-0.8 MPA |
Machine measurement | 800*1000*1360mm |
Machine net weight | 500kg |
