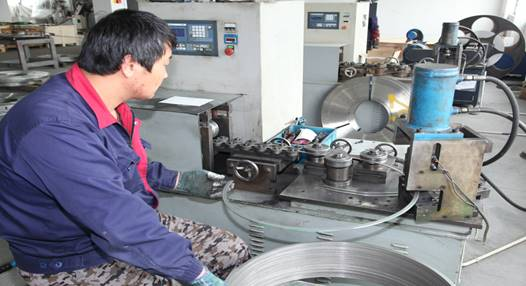

4.Semi Automatic Ring Bending Machine
To bend the SS strip into inner and outer ring of SWG. Bending Diameter from 200mm to 4000mm. Suitable small lot and many sizes production.
Semi Automatic Ring Bending Machine specification
Style | WW500SCLC Ring Bending Machine for SWG IR and OR |
Bending ring thickness | 3mm,4mm |
Maximum ring OD | 4000mm |
Minimum ring ID | 200mm |
Total power | 2.2kw |
Spindle motor power | 1.5kw |
Power supply voltage | 380v/220v as request,3 phases |
Linear speed | 120mm/s |
Machine measurement | 1000*700*900mm |
Machine net weight | 280kg |
More information, please feel free to contact us.
