Reinforced Graphite Gaskets with or without eyelet

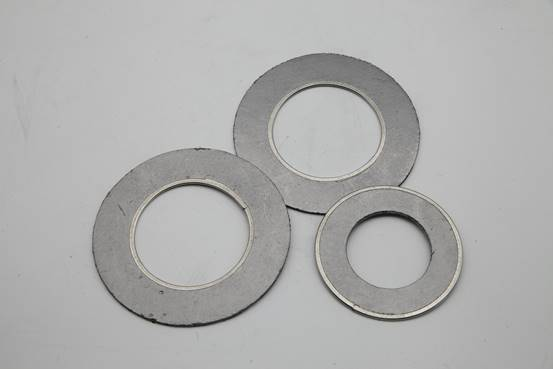

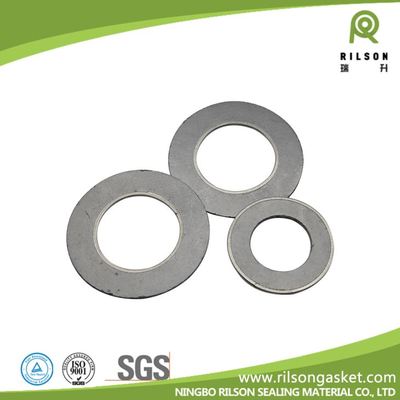

Gaskets made by 98% pure exfoliated graphite reinforced a central layer of 0.1mm thickness tanged stainless steel.The graphite is compressed without the use of adhesives.The graphite gasket construction with or without eyelet for your reference.
Prime Features
1.Exceptional resistance to blow-out and crushing.
2.Tough and versatile composite for high pressures.
3.Strong composite construction with or without eyelets.
Specifications
Density: 1.0g/cm3
Compressibility (ASTM F36A): 15~35%
Recovery (ASTM F36A): >/= 20%
Pressure: 200bar
Temperature: -240~+550 oC
PH: 0~14
Dimension
ASME B 16.21, DIN2690, And according to your requirements
More information, please click the "PDF" download or contact with us.
