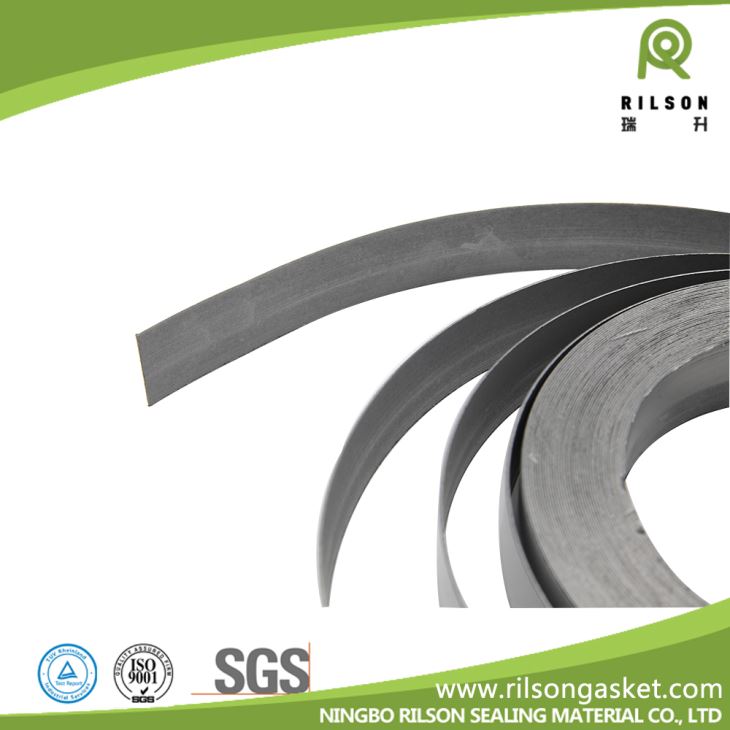

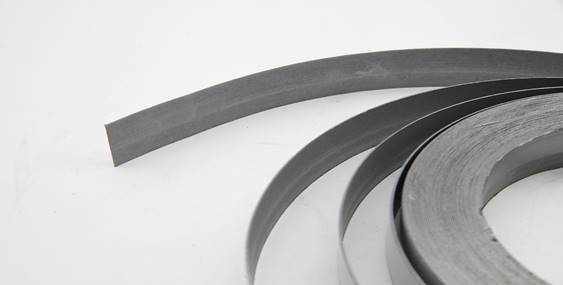

Pure Graphite Tape
Description
1)It is cutted of flexible graphite rolls.
2)Graphite tape filler for spiral wound gasket,In-situ pump and valve gland packing, Manufacture of graphite packing rings
3)Facing material for camprofile type gaskets,Filler for metal jacketed type gaskets.
Also manufacture Crinkled Graphite Tape.
Length for one roll: 50M;80M;100M,120M |
Width: 4.0MM;5.0MM;5.4MM,5.5MM;5.7MM,6.0MM8.0MM,12MM,14MM |
Thickness: 0.4MM;0.5MM;0.7MM,0.8MM |
Test item Test result: |
Tolerance of thickness | ±0.03mm |
Tolerance of density | ±0.05g/cm3 |
Ash content | 0.42% |
Carbon content | 99.30% |
Tensile strength | 4.5Mpa |
Compressibility | 54.73% |
Resilience rate | 10.21% |
Ignition loss 450°C | <= 1% |
Ignition loss 600°C | <= 20% |
Chlorine content | 30ppm |
