Title:Adhesived Corrugated Graphite Tape

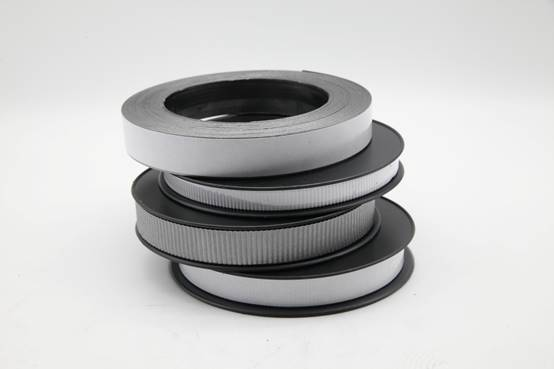

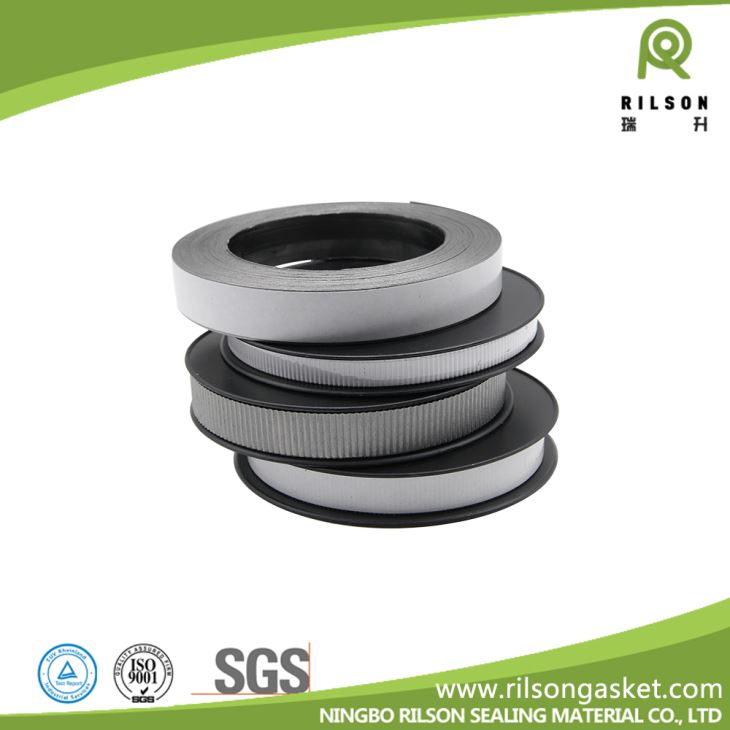

Adhesived Corrugated Graphite Tape
Corrugated Graphite tape is made by the high precision CNC lathe to cut the graphite coil into strip. Compared with the traditional graphite technology, it has higher precision, low damage and higher smoothness. It can also be with adhesive on one side.
Properties and Features:
Width (mm) | 2.5- 1000 |
Thickness (mm ) | 0.1- 0.8 |
Length (mm ) | 1- 200 |
Tolerance of Thickness ( mm ) | ±0.3 |
Carbon Content % | 95- 99.5 |
Tensile Strength (Mpa ) | ≥ 4.5 |
Working Temperature (℃ ) | -200- 650 ( Under Oxidizing Condition ) -200~ +3000°C(non-Oxidizing situation) |
PH Value | 0- 14 |
Density (g/ cm3 ) | 0.7- 1.3 |
Tolerance of Density (g/ cm3 ) | ± 0.5 |
1.high temperature and cold temperature resistance
2.excellent corrosion resistant
3.Save money and time
4.Good compression resilient
Application:
1. As a endless gasket strip for vessels and flanges
2. Used in heat exchangers, boilers, pipelines, furnace doors, box covers, etc.
3. Coating on both side of kammprofile gaskets.
4. Graphite tape filler is used for spiral wound gasket, In-situ pump and valve gland packing, Manufacture of graphite packing rings
5. Filler for metal jacketed type gaskets
