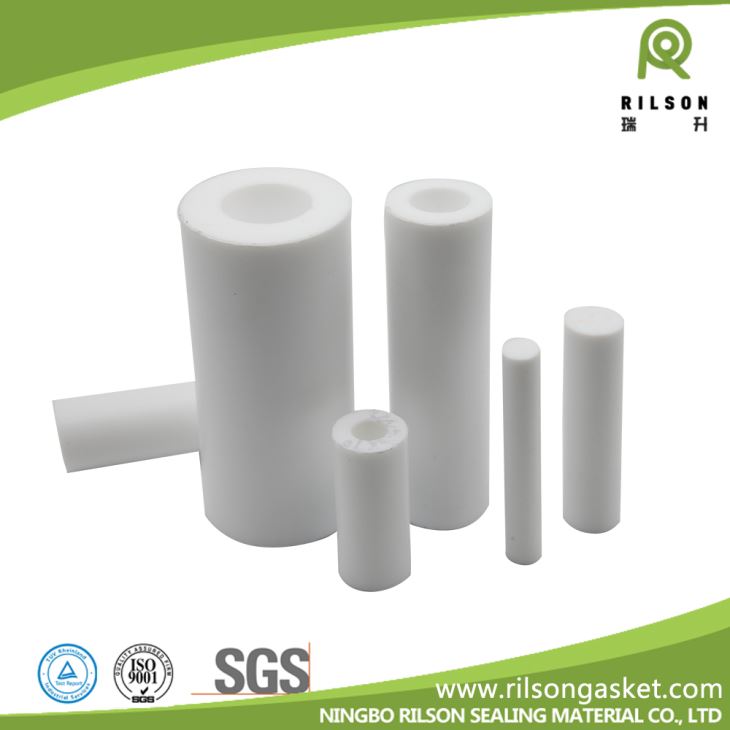

Title :Extruded PTFE Rods
PTFE Rods has the lowest coefficient of friction of all kinds solid materials. it may efficiently work at the temperature -180℃- +260 ℃. So it is an ideal element for the food industry. It consists of the best dielectric property. Due to this property, the rods are used in electrical and electronics industries.
Extruded PTFE Rods
PTFE rod can be manufactured by three kinds of process. The rod can be made by paste extruded, plug extruded, and molded.
Specification
Item | Dia.(mm) | Length(mm) |
Paste Extruded Rod | 1~4 | According to customer's request |
Plug Extruded Rod | 4~200 | 500~2000 |
Molded Rod | 5~500 | 10~300 |
Prime Properties
ITEM | Data | Data Unit |
Apparent density | 2.10-2.30 | g/ cm3 |
Tensile Strength | ≥25 about 25 ~ 45 | Mpa |
Elongation at break | ≥150 about 200~ 350 | % |
Working Temp | -180~260 | ℃ |
Melting point | 327 | ℃ |
Produce Max.Temp | 385 | ℃ |
Compressive strength 1% deformation | 400-500 | % |
Hardness | 50-60 | shoreD |
Extruded PTFE Rods Features:
1.corrosion resistance , weather resistance
2.high lubricity, no adhesion
3.non-toxic,
4.non-flammable
5.acid and alkali resistance (except molten alkali metals)
6.antioxidant.
More specification please leave your message or contact us .
