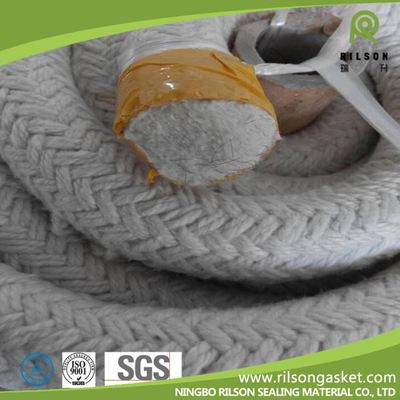

Ceramic Fiber Braided Packing insert with steel wire
High temperature heat insulation tape is a woven fabric made from our high quality ceramic fiber yarn. It can be used for high temperature applications up to 950° C.The Tape is reinforced with steel wire
Ceramic Fiber Packing insert with steel wire Typical Application
1.Universal packing, for rotary, reciprocating pumps, in ship building and domestic fresh water pumps.
2.Suited for chemical neutral and resistant to water, steam, hot air, oils, etc.
Prime Features
1.anti-corrosion,antioxidant
2.Excellent capabilities of high strength and high temperature resistance
3.Economical packing
Specifications
Density | 0.75~1.25g/cm³ |
PH range | 5~9 |
Temperature | -80℃~+950℃ |
Pressure bar | Rotating | 10bar |
Reciprocating | 15 bar |
Static | 50 bar |
Shaft speed | m/s | 10m/s |
Materials:ceramic fiber,steel wire
Shape:lattice braid
Industry served:oil and gas、electronic,pulp&paper,municipal/waste water,steel&metals industry.
